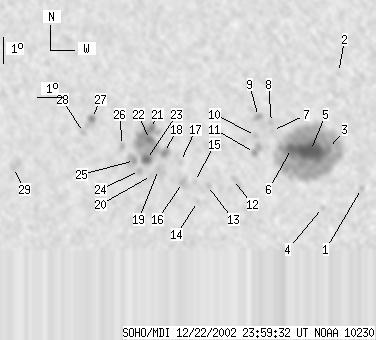

SOHO MDI 2002-12-22 23:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81 | 702 | 41 | 353 | -8.77 | 70.17 | 9.31 | 230.69 | 0.2046 | -1042.8 | -410.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2002-12-22 23:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -10.18 | 74.56 | 13.70 | 238.07 | 0.2760 | 725.0 | 511.4 | |
| 0 | 3 | 0 | 1 | -5.72 | 73.50 | 12.64 | 252.72 | 0.2291 | -662.0 | -522.7 | |
| 4 | 415 | 2 | 211 | -8.65 | 73.19 | 12.33 | 240.68 | 0.2432 | -1226.4 | -722.7 | |
| 0 | 4 | 0 | 2 | -10.93 | 73.03 | 12.18 | 232.66 | 0.2617 | 637.0 | 395.3 | |
| 42 | -3 | 21 | -3 | -8.73 | 72.48 | 11.62 | 238.94 | 0.2335 | -1993.3 | 999999 | |
| 8 | -3 | 4 | -3 | -8.66 | 71.72 | 10.87 | 237.54 | 0.2219 | -1946.3 | 999999 | |
| 0 | 2 | 0 | 1 | -7.97 | 70.96 | 10.10 | 238.48 | 0.2047 | -780.0 | -642.7 | |
| 0 | 5 | 0 | 2 | -7.66 | 70.91 | 10.05 | 239.68 | 0.2013 | -621.0 | -694.0 | |
| 0 | 6 | 0 | 3 | -7.43 | 70.39 | 9.54 | 239.40 | 0.1918 | -874.0 | -884.6 | |
| 0 | 5 | 0 | 3 | -8.16 | 70.29 | 9.44 | 235.90 | 0.1969 | -869.0 | -772.2 | |
| 0 | 13 | 0 | 7 | -8.82 | 70.27 | 9.41 | 233.13 | 0.2030 | -1261.0 | -929.7 | |
| 0 | 12 | 0 | 6 | -9.87 | 69.47 | 8.61 | 226.66 | 0.2039 | -612.0 | -524.9 | |
| 0 | 4 | 0 | 2 | -10.10 | 68.46 | 7.60 | 222.26 | 0.1945 | 444.0 | 501.0 | |
| 0 | 4 | 0 | 2 | -10.72 | 68.08 | 7.22 | 218.73 | 0.1983 | 621.0 | 434.9 | |
| 0 | 3 | 0 | 1 | -9.95 | 67.94 | 7.09 | 220.83 | 0.1867 | 500.0 | 455.3 | |
| 0 | 7 | 0 | 4 | -9.99 | 67.47 | 6.62 | 218.77 | 0.1821 | 1056.0 | 907.6 | |
| 0 | 4 | 0 | 2 | -9.18 | 67.38 | 6.52 | 221.39 | 0.1704 | 917.0 | 701.5 | |
| 3 | 125 | 2 | 63 | -8.83 | 66.75 | 5.89 | 219.92 | 0.1588 | 1197.3 | -191.0 | |
| 0 | 22 | 0 | 11 | -9.49 | 66.53 | 5.67 | 216.31 | 0.1653 | 1160.0 | 828.1 | |
| 0 | 5 | 0 | 2 | -9.72 | 66.26 | 5.40 | 214.17 | 0.1659 | 790.0 | 646.7 | |
| 5 | -18 | 3 | -18 | -7.91 | 66.19 | 5.33 | 221.20 | 0.1404 | -1355.8 | 999999 | |
| 5 | -18 | 2 | -18 | -8.33 | 66.16 | 5.30 | 219.09 | 0.1457 | -1382.8 | 999999 | |
| 8 | -18 | 4 | -18 | -9.11 | 66.05 | 5.19 | 215.38 | 0.1551 | 1385.5 | 999999 | |
| 0 | 5 | 0 | 2 | -9.53 | 65.79 | 4.93 | 212.45 | 0.1587 | 1001.0 | 825.5 | |
| 2 | 18 | 1 | 9 | -9.15 | 65.58 | 4.73 | 212.74 | 0.1512 | 1221.2 | 743.4 | |
| 0 | 6 | 0 | 3 | -8.57 | 65.11 | 4.25 | 212.19 | 0.1384 | -899.0 | -648.3 | |
| 4 | 13 | 2 | 6 | -7.53 | 63.90 | 3.04 | 208.12 | 0.1122 | 1130.7 | 834.4 | |
| 0 | 4 | 0 | 2 | -8.07 | 63.59 | 2.74 | 203.67 | 0.1183 | 750.0 | 648.6 | |
| 0 | 13 | 0 | 6 | -9.42 | 60.88 | 0.03 | 180.21 | 0.1319 | 899.0 | 785.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
