SOHO MDI 2002-12-23 03:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75 | 636 | 40 | 324 | -8.68 | 70.62 | 11.52 | 237.75 | 0.2330 | -1150.3 | -501.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2002-12-23 03:11:32 UT |

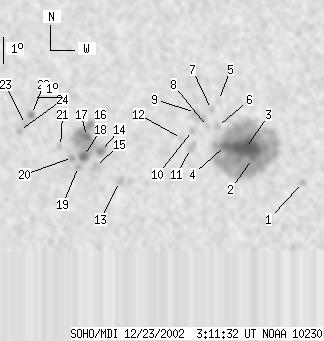

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -10.06 | 74.77 | 15.67 | 241.69 | 0.3034 | 773.0 | 653.9 | |
| 4 | 411 | 2 | 211 | -9.15 | 72.72 | 13.62 | 241.31 | 0.2662 | -1370.1 | -701.4 | |
| 43 | -2 | 22 | -2 | -8.77 | 72.42 | 13.32 | 242.12 | 0.2589 | -1983.9 | 999999 | |
| 7 | -2 | 4 | -2 | -8.66 | 71.62 | 12.52 | 241.07 | 0.2461 | -1858.8 | 999999 | |
| 0 | 4 | 0 | 2 | -6.93 | 71.30 | 12.20 | 247.14 | 0.2286 | -764.0 | -495.0 | |
| 0 | 6 | 0 | 3 | -7.93 | 71.28 | 12.18 | 243.16 | 0.2354 | -982.0 | -721.7 | |
| 0 | 4 | 0 | 2 | -7.28 | 71.03 | 11.93 | 245.27 | 0.2268 | 519.0 | 221.8 | |
| 0 | 6 | 0 | 3 | -7.93 | 70.89 | 11.79 | 242.40 | 0.2294 | -768.0 | -613.3 | |
| 0 | 24 | 0 | 12 | -7.39 | 70.40 | 11.30 | 243.61 | 0.2180 | -1058.0 | -776.9 | |
| 0 | 3 | 0 | 2 | -8.09 | 70.30 | 11.20 | 240.58 | 0.2218 | -1142.0 | -924.5 | |
| 0 | 10 | 0 | 5 | -8.78 | 70.24 | 11.14 | 237.75 | 0.2269 | -1039.0 | -828.2 | |
| 0 | 5 | 0 | 3 | -8.40 | 69.88 | 10.78 | 238.39 | 0.2182 | -993.0 | -795.8 | |
| 0 | 6 | 0 | 3 | -10.07 | 67.48 | 8.38 | 225.19 | 0.2032 | 1271.0 | 917.0 | |
| 4 | 110 | 2 | 55 | -8.92 | 66.71 | 7.61 | 226.88 | 0.1801 | 1134.7 | -178.8 | |
| 0 | 10 | 0 | 5 | -9.50 | 66.52 | 7.43 | 223.88 | 0.1847 | 1081.0 | 912.9 | |
| 3 | -14 | 2 | -14 | -7.88 | 66.26 | 7.16 | 229.77 | 0.1625 | -1298.6 | 999999 | |
| 4 | -14 | 2 | -14 | -8.34 | 66.15 | 7.05 | 227.20 | 0.1663 | -1382.3 | 999999 | |
| 7 | -14 | 4 | -14 | -9.11 | 66.05 | 6.95 | 223.50 | 0.1743 | 1321.3 | 999999 | |
| 0 | 6 | 0 | 3 | -9.50 | 65.86 | 6.76 | 221.22 | 0.1770 | 1067.0 | 787.8 | |
| 0 | 6 | 0 | 3 | -9.15 | 65.62 | 6.52 | 221.54 | 0.1698 | 1222.0 | 926.9 | |
| 0 | 3 | 0 | 2 | -8.73 | 65.14 | 6.04 | 221.13 | 0.1589 | -996.0 | -724.2 | |
| 3 | 8 | 2 | 4 | -7.50 | 64.00 | 4.90 | 220.89 | 0.1299 | 962.0 | 615.6 | |
| 0 | 5 | 0 | 2 | -7.89 | 63.77 | 4.67 | 217.68 | 0.1326 | 971.0 | 796.3 | |
| 0 | 5 | 0 | 2 | -8.12 | 63.54 | 4.44 | 215.25 | 0.1334 | 891.0 | 630.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
