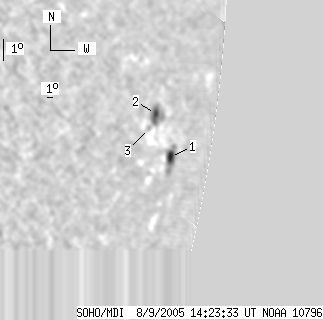

SOHO MDI 2005-08-09 14:23:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 60 | 14 | 116 | -6.82 | 54.96 | 74.04 | 261.19 | 0.9668 | 12.3 | 7.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2005-08-09 14:23:33 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5 | 32 | 10 | 68 | -7.65 | 56.23 | 75.31 | 260.53 | 0.9730 | -105.7 | -102.4 | |
| 2 | 26 | 4 | 44 | -5.59 | 53.22 | 72.29 | 262.18 | 0.9583 | 243.8 | 143.5 | |
| 0 | 2 | 0 | 4 | -6.13 | 52.61 | 71.68 | 261.53 | 0.9556 | 267.0 | 258.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
